Ascending conveyors vertical DESB

The HO-MA ascending conveyor DESB is the optimal solution for a right-angled and continuous transport and feeding solution.

Highlights

vertical / ascending inclined
right-angled

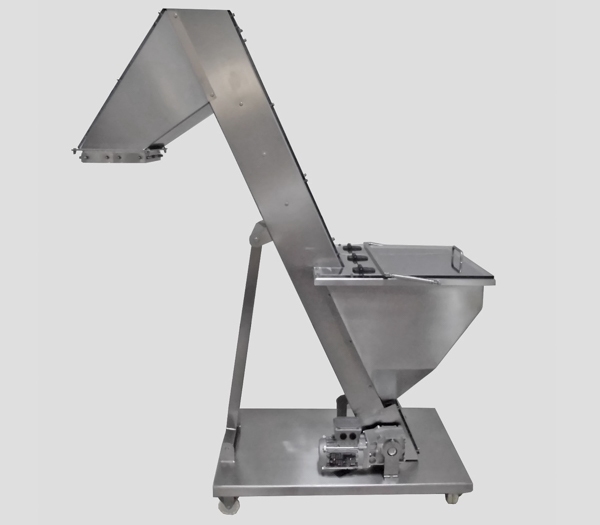

Ascending conveyors vertical DESB, product image 1

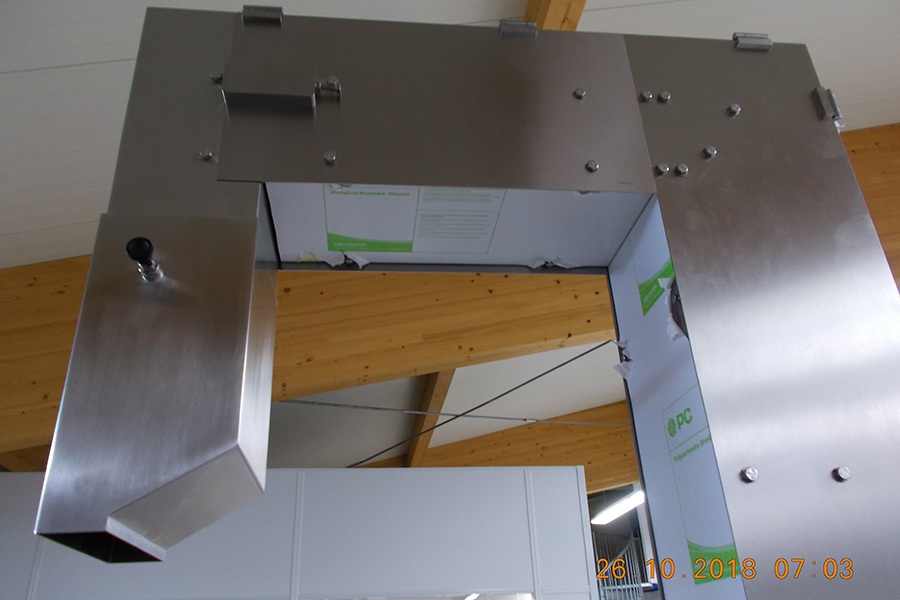

Ascending conveyors vertical DESB – vertical, right-angled rising transport solution

Our ascending conveyors (dosing elevators) are designed for different volumes. Products are fed as bulk material to downstream machines.
Dosing elevator and feeding system for bulk material
Standard version: Pharma-Standard

Special designs are possible

	Ascending conveyor DE	Ascending conveyor DEB	Ascending conveyor DESB
	For small amounts	For large amounts / with integrated bunker	Vertical feeding solution / for large amounts
Volume	60 l – 250 l
Filling height	900 mm +/- 50 mm	900 mm +/- 50 mm	900 mm +/- 50 mm
Discharge height	1.,200 mm – 2,200 mm	1,200 mm – 2,200 mm	1,200 mm – 2,200 mm
Transport widht	up to 240 mm	+ 240 mm	up to 240 mm
Driver height	20 mm / 30 mm / 40 mm / 50 mm / 60 mm	20 mm / 30 mm / 40 mm / 50 mm / 60 mm	20 mm / 30 mm / 40 mm / 50 mm / 60 mm
Feet	Foot / foot with bracket / wheels	Foot / foot with bracket / wheels	Foot / foot with bracket / wheels
Discharge flap	optional	optional	optional
Cover	optional (Polycarbonat)	optional (Polycarbonat)	optional (Polycarbonat)
Angle	+/- 25 °	+/- 25 °	90 °

HOMA brochure

We will be happy to send you further information.
