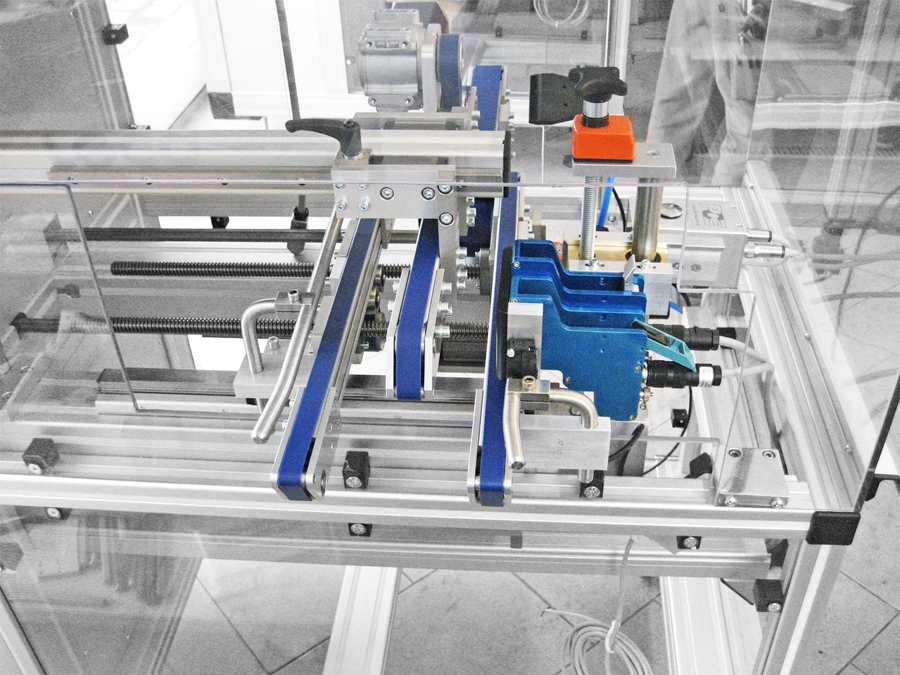

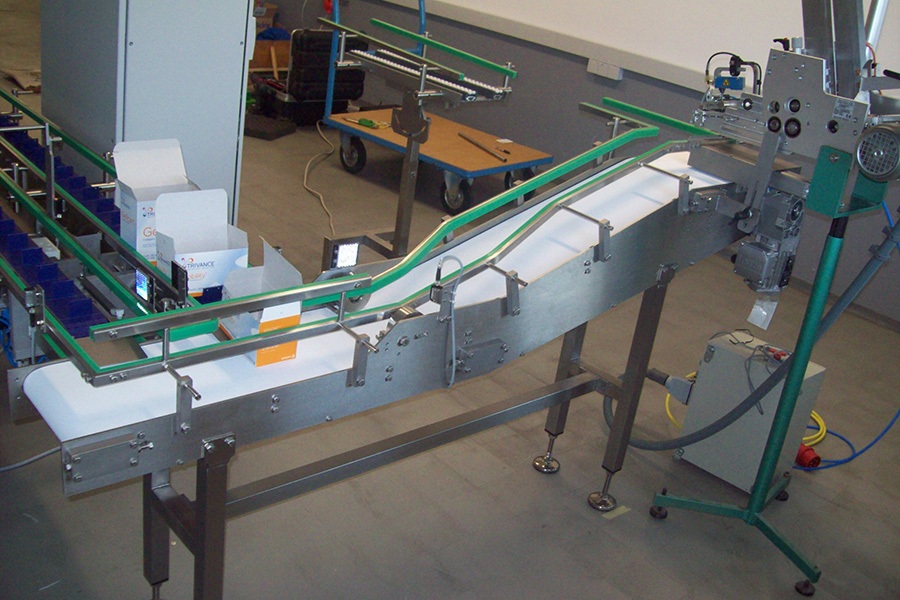

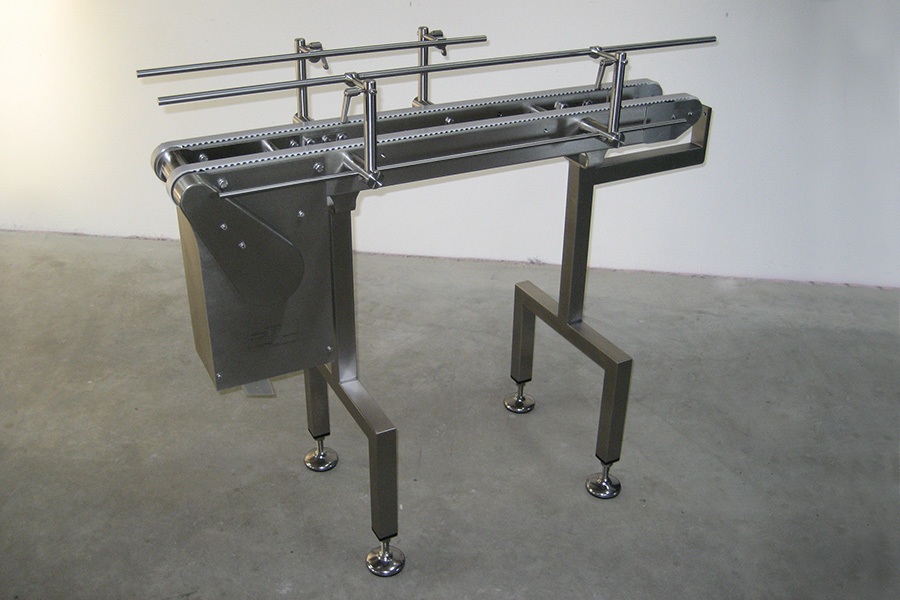

Due to their non-slip properties, belt conveyors are particularly suitable for small-sized and lying, bulky products such as bags. The design is possible as a simple belt conveyor belt or as a multi-track belt conveyor.
Their slip resistance makes belt bands especially suitable for small-scale and bulky products such as bags.
Simple band conveyor belt or oder Multitrack belt band
Bottles / tins / trays / containers / cartridges / bags / caps / syringes
Special designs are possible
| Simple band conveyor belt | Multitrack belt band | |
|---|---|---|
| Attributes | Lanyard belt / toothed belt | Belt band |
| Transport lenght | from 500 mm | from 500 mm |
| Transport height | 900 mm +/- 50 mm | 900 mm +/- 50 mm |
| Transport width | 55 mm – 700 mm | individual |
| Trails | 1 | 2 + |
| Transport angle | +/- 30° | +/- 30° |
| Attachment | Wall / Table | Wall / Table |
| Feet | Foot / foot with bracket / wheels | Foot / foot with bracket / wheels |
| Knife edge | optional | - |
| Drive | Servo / three-phase current / drum motor centre drive / final drive | Servo / three-phase current motor centre drive / final drive |
| Speed (m/min) | 6,7 / 10 / 12 / 17 / 24 / 28 | 6,7 / 10 / 12 / 17 / 24 / 28 |
| Flexibility | Transfer / pivoting / tilting belt | tilting belt |
| Lateral guidance | 1 + | 1 + |
| Worktable | optional | optional |
| Driver / tunnel | Longitudinal / transverse | longitudinal |
We will be happy to send you further information.
