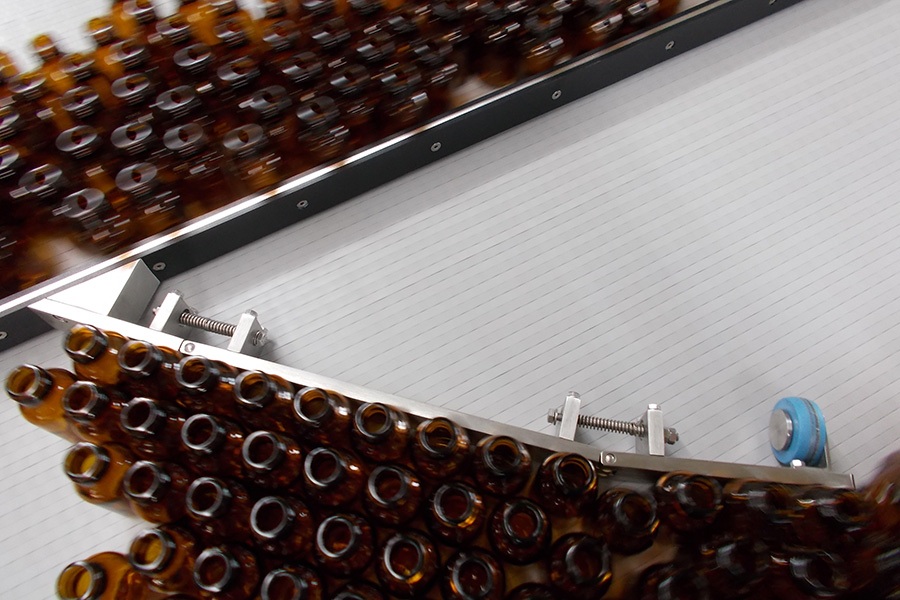

The HO-MA Bi-flow belt ensures a smooth and synchronised transport during the production process. The PRU is the gentle feeding solution for syringes. Round belts are used to separate the syringes for further processing.
Tins / bottles / vials / containers / trays
Special designs are possible
| Attributes | Flush-grid belt |
|---|---|
| Transport lenght | from 500 mm + |
| Transport height | 900 mm +/- 50 mm |
| Transport width | 200 mm + |
| Transport angle | - |
| Attachment | Wall / Table |
| Feet | Foot / foot with bracket / wheels |
| Knife edge | optional |
| Drive | Servo / three-phase current motor centre drive / final drive |
| Speed (m/min) | 6.7 / 10 / 12 / 17 / 24 / 28 |
| Flexibility | - |
| Lateral guidance | 1 + |
| Worktable | optional |
We will be happy to send you further information.
