Buffer table (conveyor belt)

The HO-MA buffer table ensures a smooth transport process. Our buffer tables buffer, store and collect according to required performance, formats and space conditions. Conveyor belt for buffering large quantities

  • high volume
  • single track conveyor belt

Highlights

  • congestible
  • Buffering large quantities
  • high volume

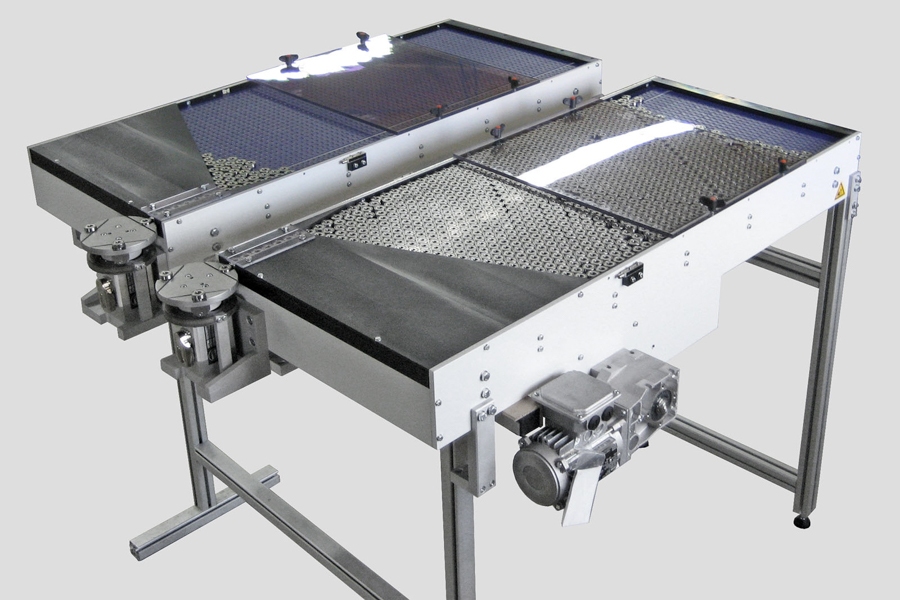

Buffering table (conveyor belt), product image 1

  • Buffer table (conveyor belt) – a storage system for buffering large amounts

    • High volume
    • Single track conveyor belt

  • Storage system for:

    stable products

  • Standard design: Pharmaceutical standard

    Special designs are possible

Transport lenghtfrom 500 mm +
Transport height900 mm +/- 50 mm
Transport widght200 mm +
Transport angle-
AttachmentWall / Table
FeetFoot / foot with bracket / wheels
Knife edgeoptional
DriveServo / three-phase current / drum motor
centre drive / final drive
Speed (m/min)6.7 / 10 / 12 / 17 / 24 / 28
Flexibility-
Lateral guidances1 +
Worktableoptional

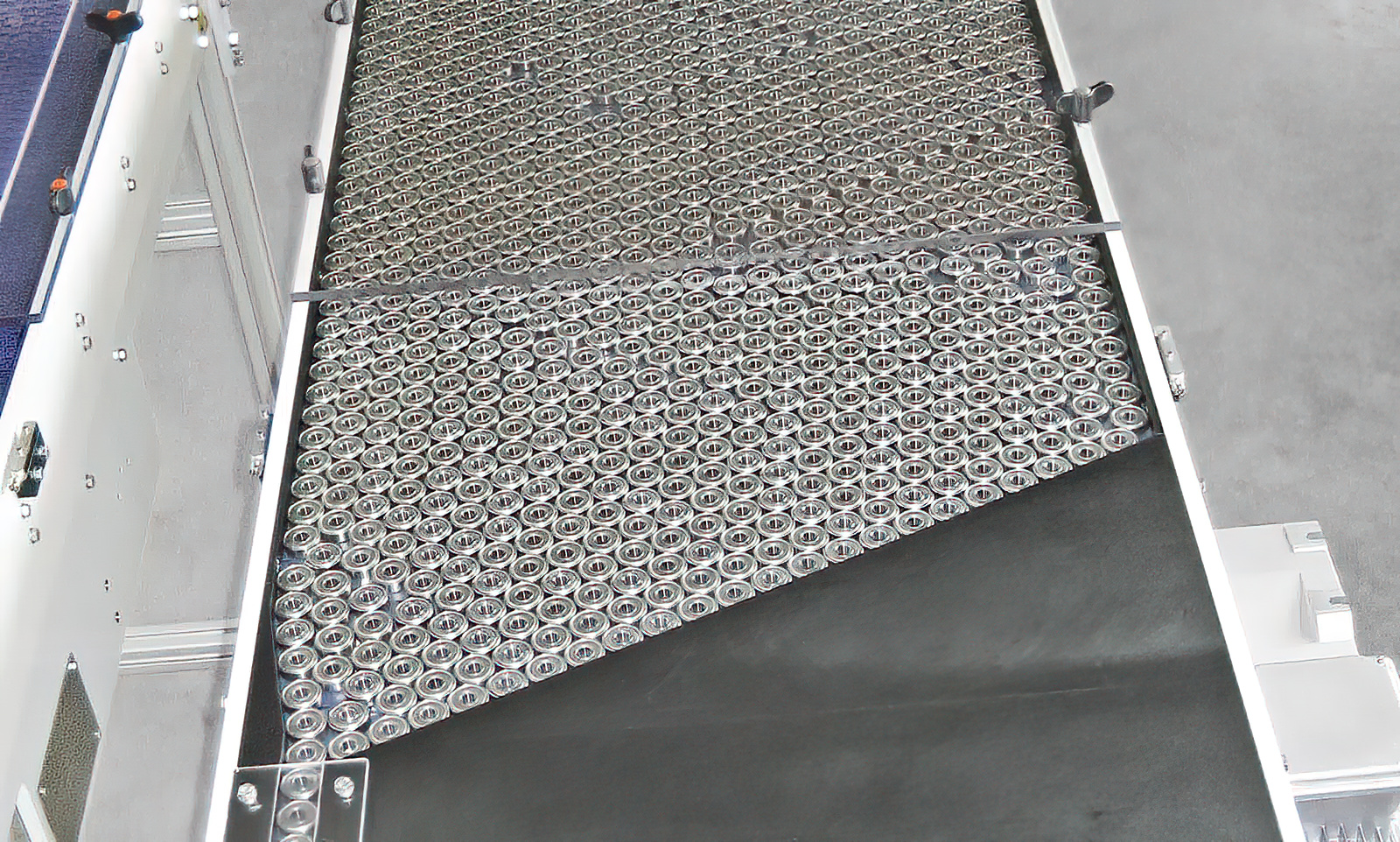

  • Buffering table (conveyor belt), product image 1

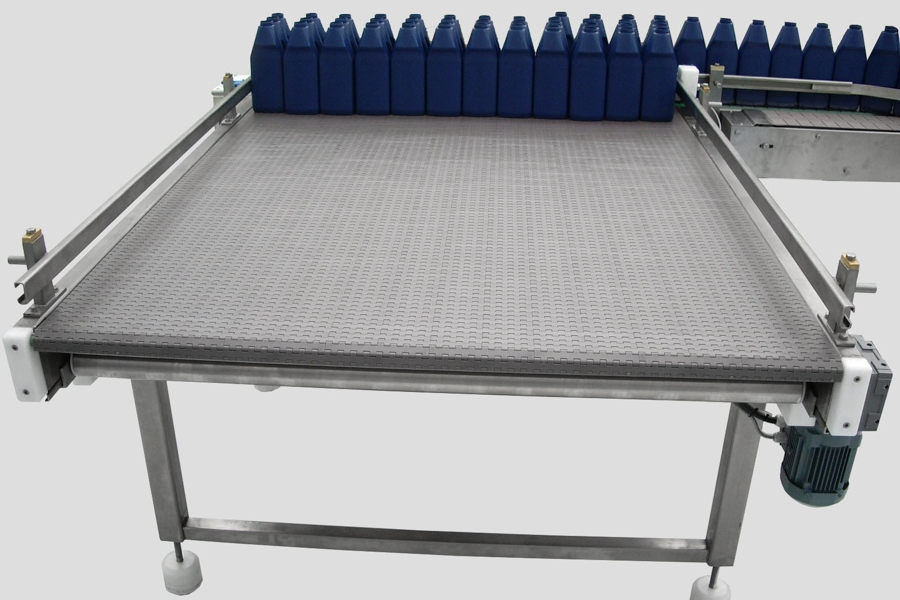

  • Buffering table (conveyor belt), product image 2
  • Buffering table (conveyor belt), product image 4
  • Buffering table (conveyor belt), product image 3
  • Buffering table (conveyor belt), product image 5
  • Buffering table (conveyor belt), product image 6

We will be happy to send you further information.
