The linear HO-MA conveyor belt offers an individual transport and feeding solution adapted to your requirements and conditions. Space-saving conveyor belt with a minimum width of 55 mm / suitable for small parts. Mesh chain conveyors are to be chosen especially for high capacities. They are easy to install and replace.

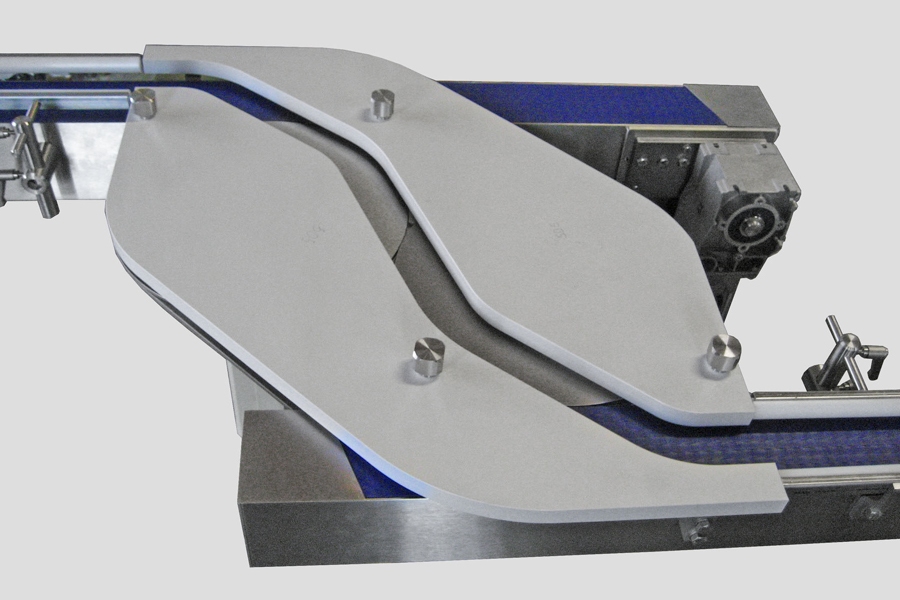

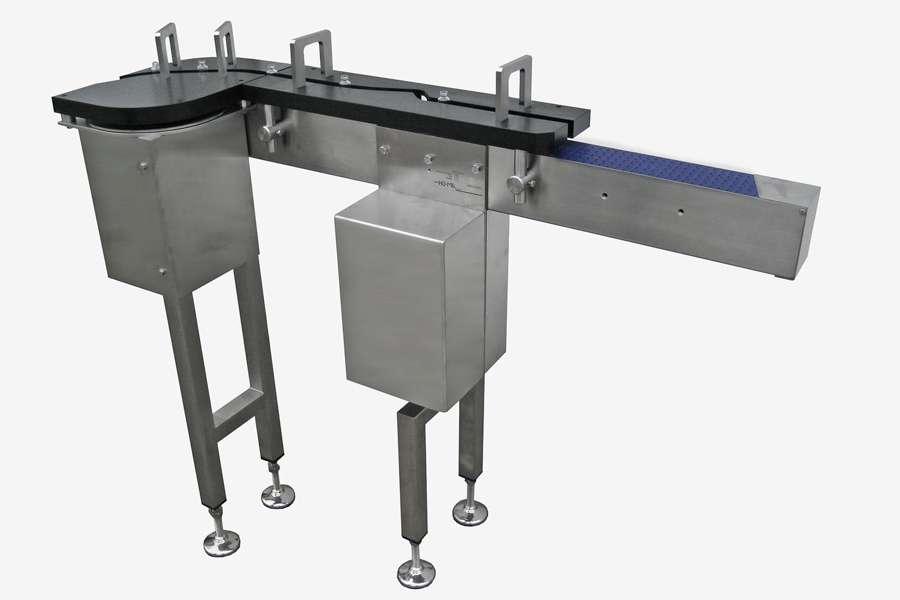

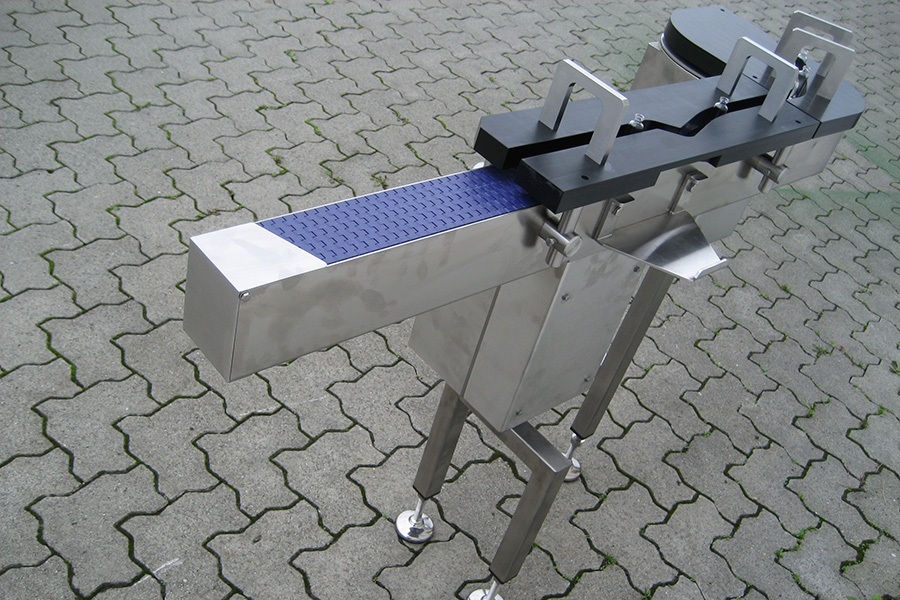

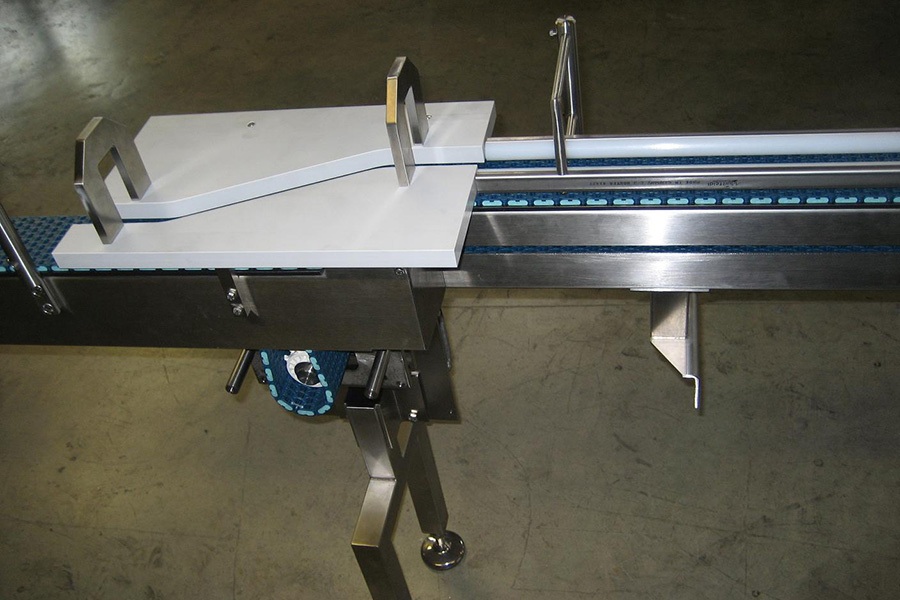

Its flexible design makes the flush-grid belt conveyor particularly compact and its curve radius can be adjusted.
energy-saving / flexible

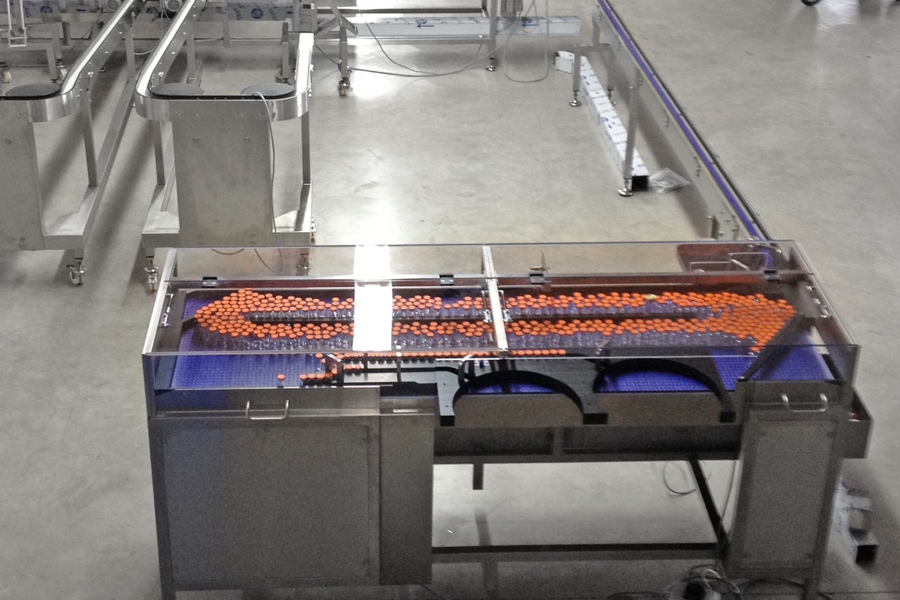

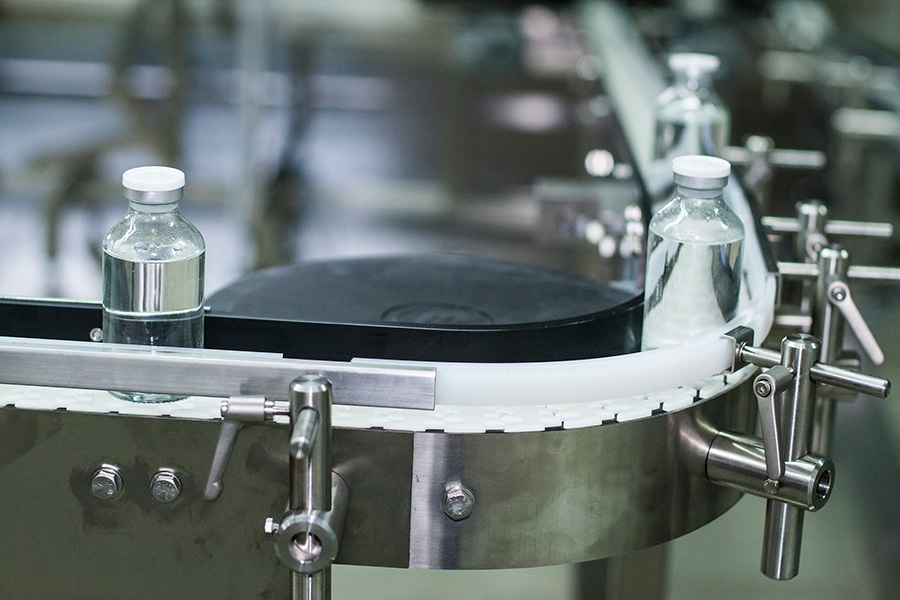

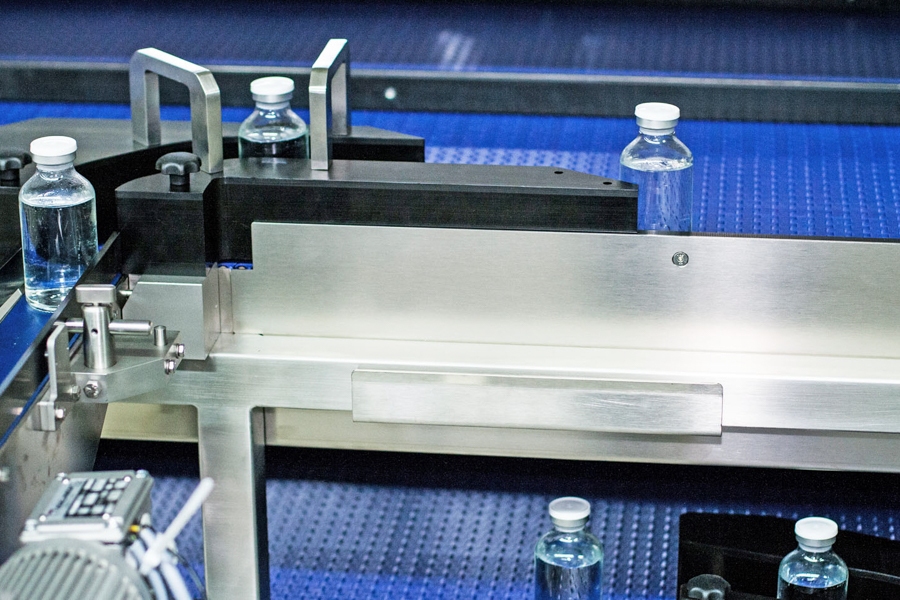

Bottles / tins / vials / trays / containers
Special designs are possible
| Attributes | Flush-grid belt |
|---|---|
| Transport lenght | from 500 mm + |
| Transport height | 900 mm +/- 50 mm |
| Transport width | 55 mm – 700 mm |
| Trails | 1 |
| Transport angle | +/- 30° |
| Attachment | Wall / Table |
| Feet | Foot / foot with bracket / wheels |
| Knife edge | optional |
| Drive | Servo / three-phase current motor centre drive / final drive |
| Speed (m/min) | 6,7 / 10 / 12 / 17 / 24 / 28 |
| Flexibility | Transfer / pivoting / tilting belt |
| Lateral guidance | 1 + |
| Worktable | optional |
| Carrier / cleats | Lengthwise / crosswise |
We will be happy to send you further information.
