Light table

Detection of defects and contamination For: bottles / cans / vials

Highlights

  • operator dependant
  • simple visual inspections
  • detection of defects and contamination
  • prepare
Light table, product image 1

  • Light table – for detecting defects and contamination

    • Quick Visual Inspection
    • mobile and compact design
    • Detection of defects and contamination

  • For:

    bottles / cans / vials

  • Standard design: Pharmaceutical standard

    Special designs are possible

Working height900mm +/- 40mm
Working surface600mm x 390mm
LightingDimming by potentiometer (black)
Regulation of brightness: 5 up to 100%

Energy-saving and flickerless

Nominal heat development

Daylight 6500° K

Luminance density: 2,500 up to 22,000cd/m2

Power connection: 120V / 60Hz with Nema 5 plugin
Further product characteristicsDiffusing panel made of acrylic glass (frosted glass), 3mm
Removing disk made of toughened safety glass, 6mm

Flush, chamfered edge, slurred weldseam

IP 54 spray protected

UL-compliant
EnclosedAssembly manual

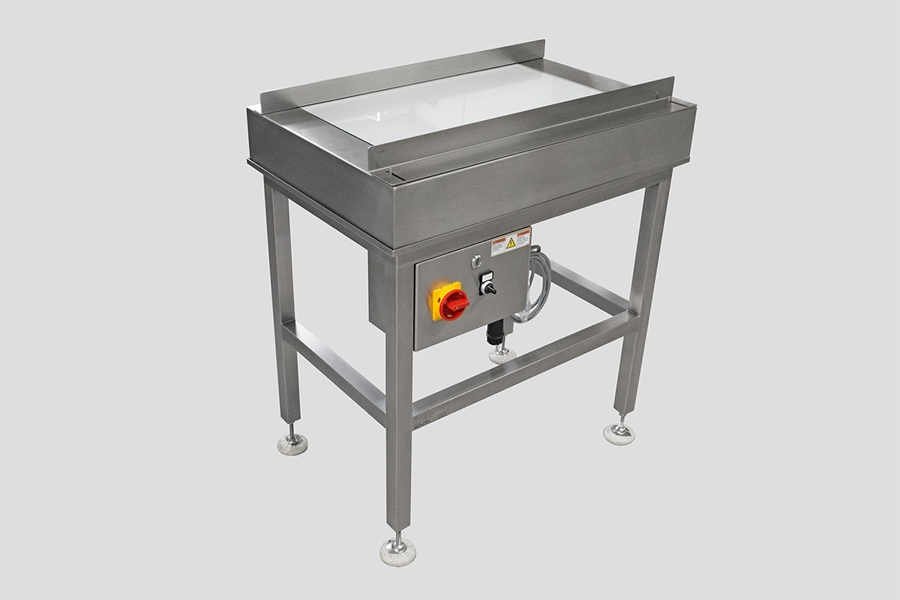

  • Light table, product image 1

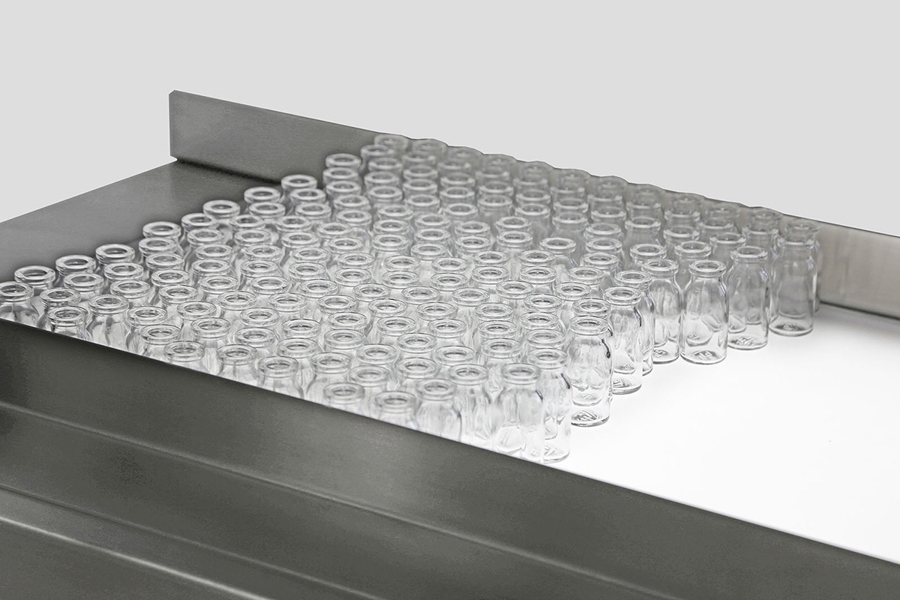

  • Light table, product image 2

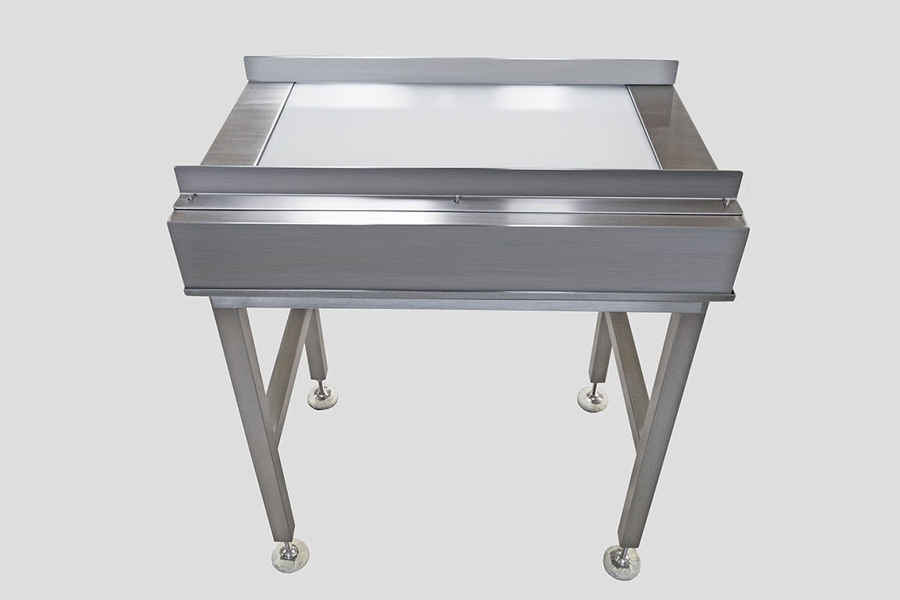

  • Light table, product image 3

We will be happy to send you further information.
