Product Rambler Unit (PRU)

The PRU is the gentle feeding solution for syringes. The syringes are separated by round belts for further processing.

Highlights

  • separate
  • vertical / ascending inclined
  • feed System
Product Rambler Unit (PRU), product image 1

  • Product Rambler Unit (PRU) – Vertical / ascending transport solution

    The PRU is the gentle feeding solution for syringes. Round belts are used to separate syringes for further processing

    Gentle feeding system for syringes, with separating function

  • The principle of plate conveyors

    Manually or via a conveyor belt, the syringes are fed to the plate conveyor as bulk material. Cascade-like plates convey the syringes upwards, where they are separated by round belts. Suspended, they are transported for further processing.

    • gentle transport of syringes
    • Separation by means of a round belt
    • low noise
    • Compatible with machines for further processing: cleaning, labeling, inspection, packaging
    • faster format change
    • Conveying system for: glass and plastic injection

  • Standard design: Pharmaceutical standard

    Special designs are possible

Width1,000 mm
Working height900 mm +/- 50 mm
DriverThree-phase current
Direction of rotationvariable
Formatindividual
Capacityup to 24,000 syringes/hour
FeetFoot / foot with bracket
Processing area5 ml – 100 ml

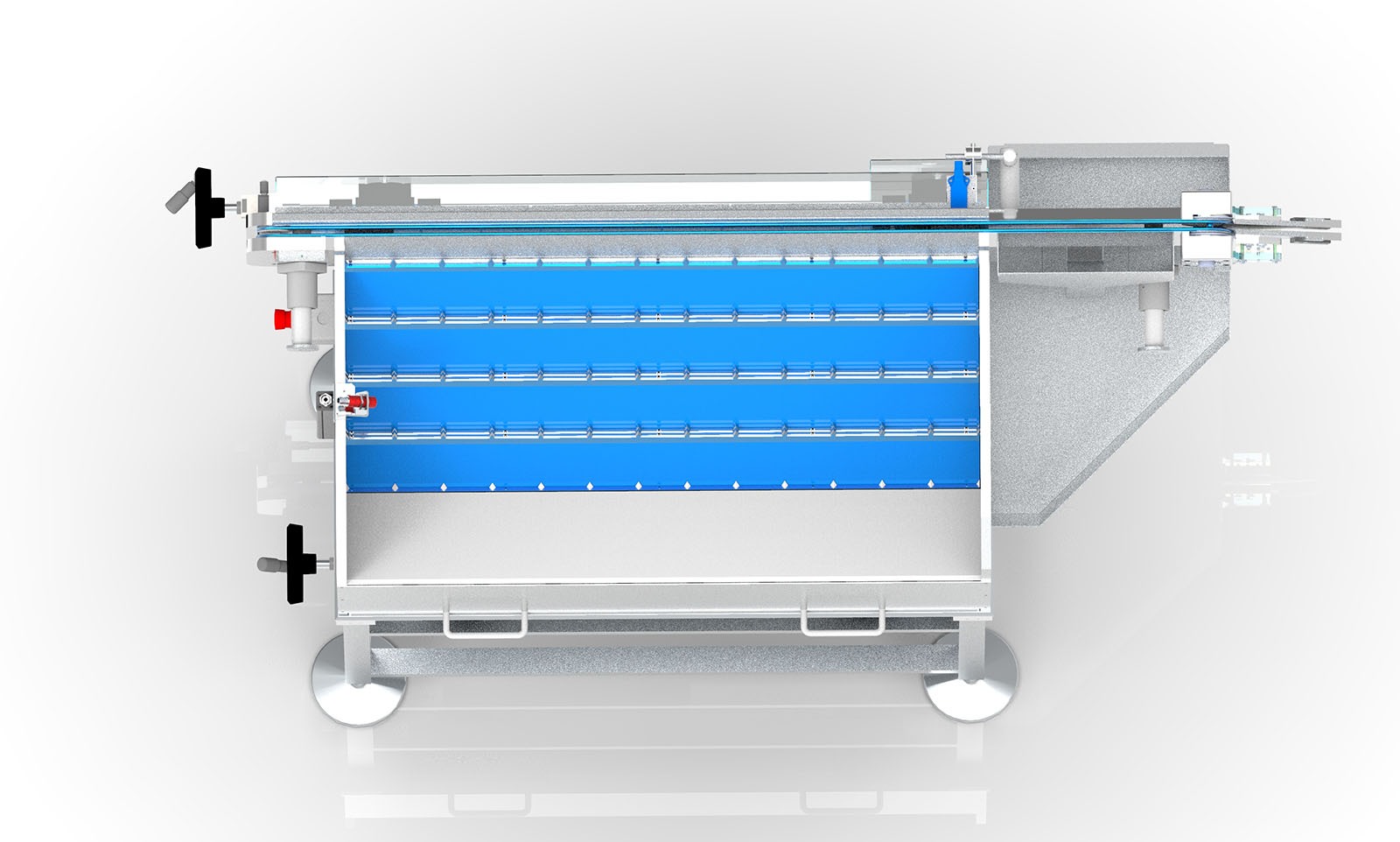

  • Product Rambler Unit (PRU), product image 1

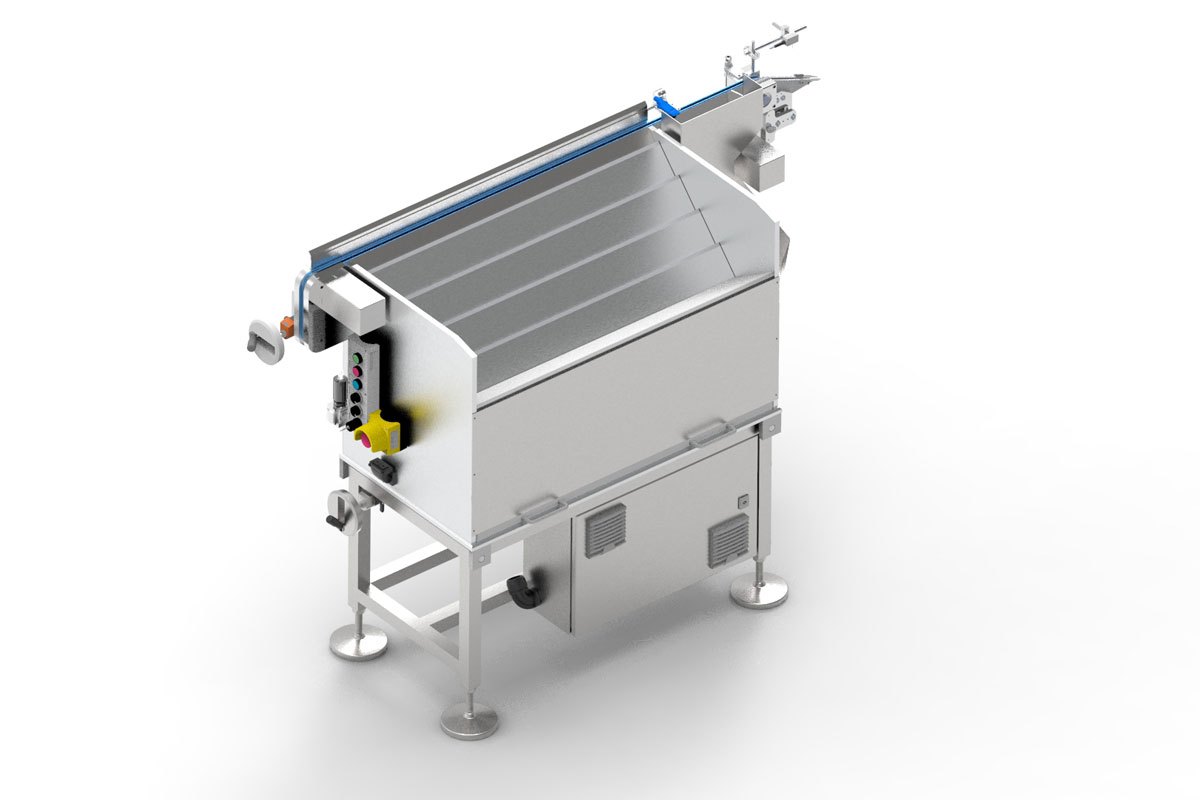

  • Product Rambler Unit (PRU), product image 2

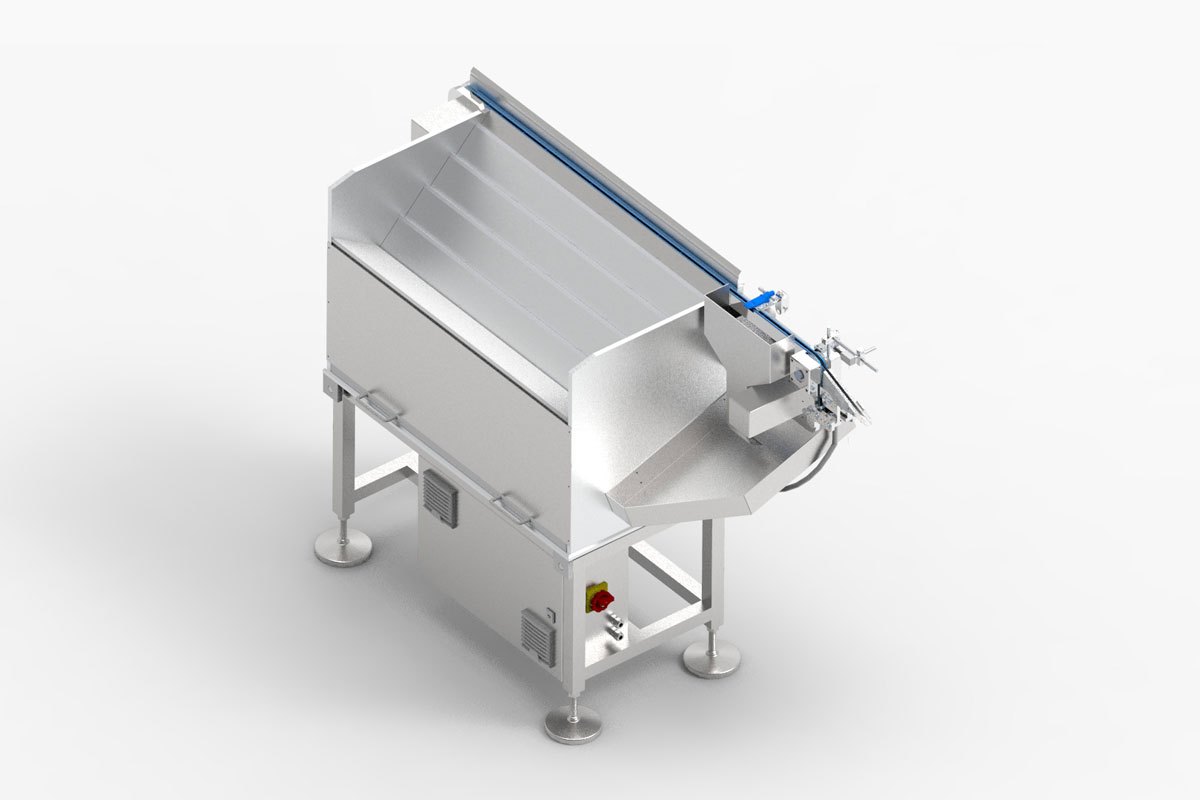

  • Product Rambler Unit (PRU), product image 3

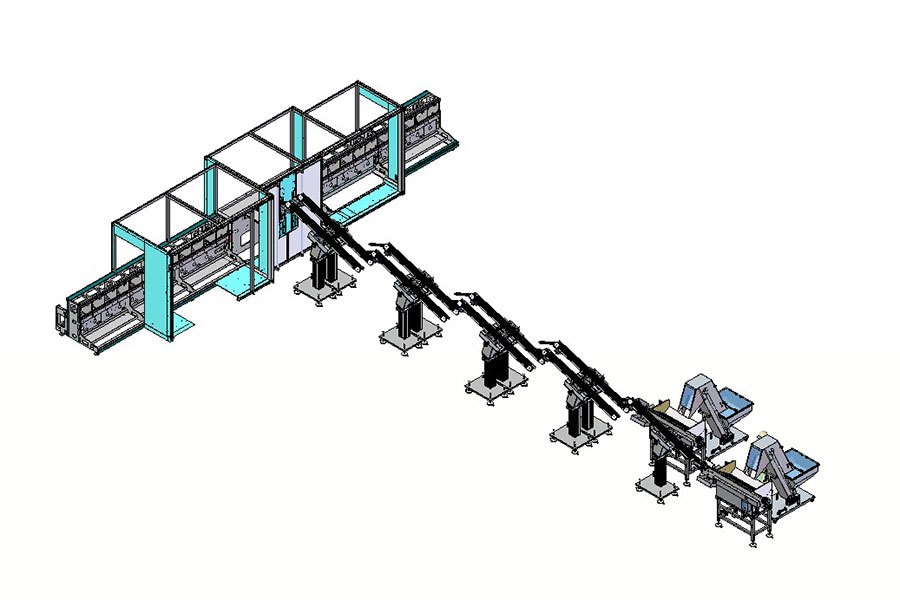

  • Product Rambler Unit (PRU), product image 4

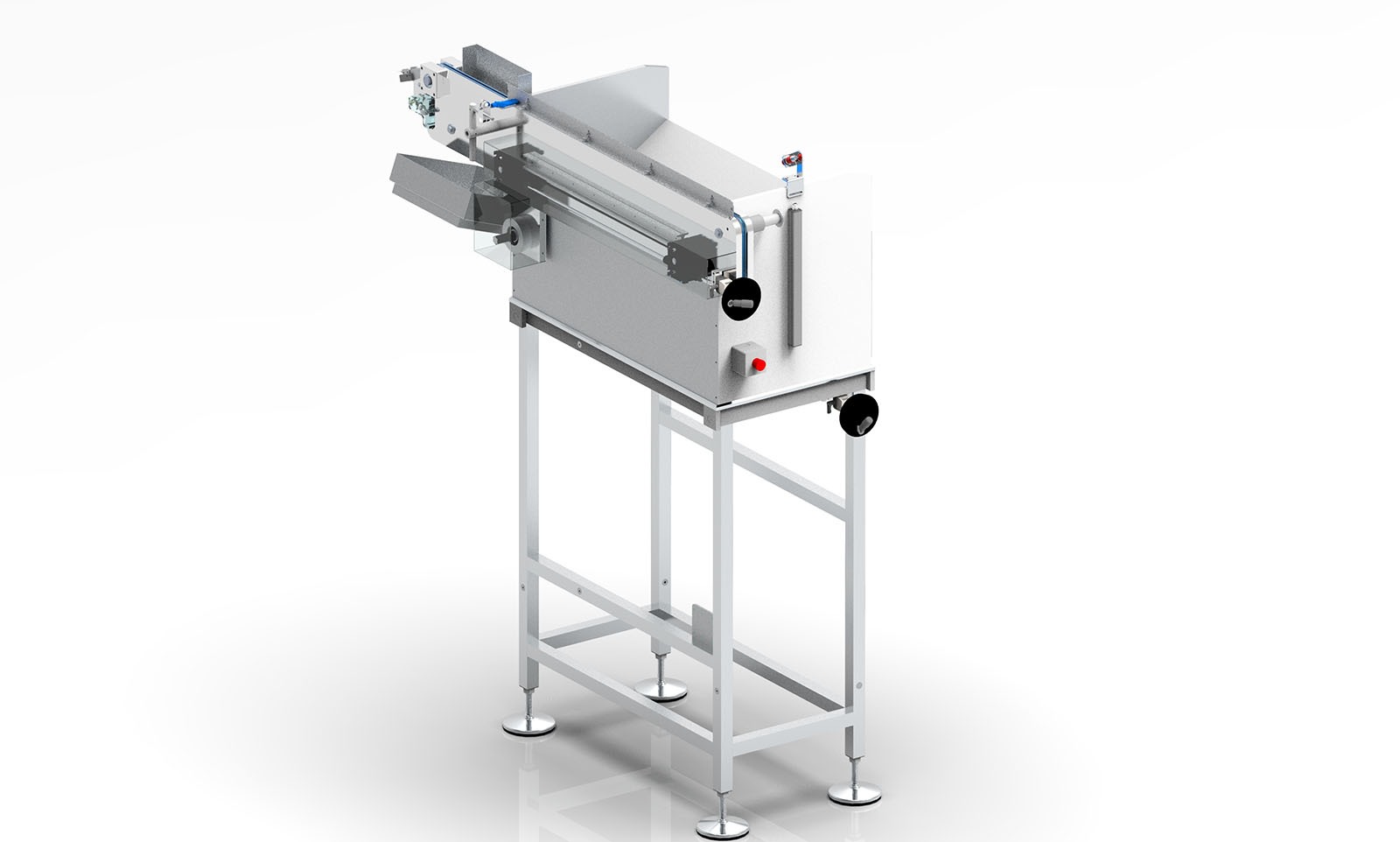

  • Product Rambler Unit (PRU), product image 5
  • Product Rambler Unit (PRU), product image 6

We will be happy to send you further information.
