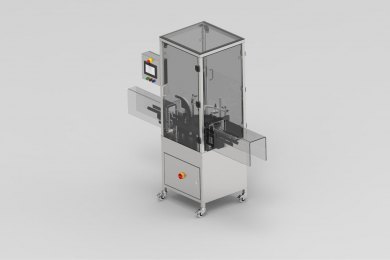

CAPPER MODULE HRC

Capper module HRC

The machines of the HO-MA module series fill, close and label. They are designed for e.g. the following segments:
Pharmacy-free medicines – Healthcare – Diagnostics – Food & non Food products.

All machines always meet our high quality standard

Standardized technology
Space saving design
Gentle object transport
Fast format changeover
Innovative operating concept
Competent service

Options of the HRC capper module

Manual lidding to fully automatic feeding of pipettes or spray pumps in various configuration levels
and much more

Combination options with the other HO-MA modules of the series

Product feeders for glass, plastic containers (stationary and non-stationary)
Filler module HRF 35 in various expansion stages
Labeling module HRL 35 with or without printing option
Product transfer or product buffer systems

Basic machine
Base frame	ca. 700 x 700 x 2.000 mm
Container	Screw cap
Feed	Hand rest on rail
Stable containers	Up to ø 55 mm and 150 mm container height
Production output	Up to 35 pieces/min / (2,100 pieces/hour)
Parts in contact with the product	Anodized aluminum / 316 L / POM

Options
Execution pharma	Stainless steel frame, cleaning edge, etc.
Sorting	Sorting pot with hopper (separate module)
Cover variant	e.g. Press On, riser tubes up to 90mm, pipettes
Screwdriving Station	Pre- and post-screwing station
Non-stable containers	After coordination, please send us product information
Next	Mobile design, gas flushing, LF design etc.

Module series
Product feed	Manual feed, turntable or buffer system, bottle erector, elevators, vibrating sorter or centrifuge
Filling machine	Filling up to 150 ml
Labeler	Optionally with printing unit
